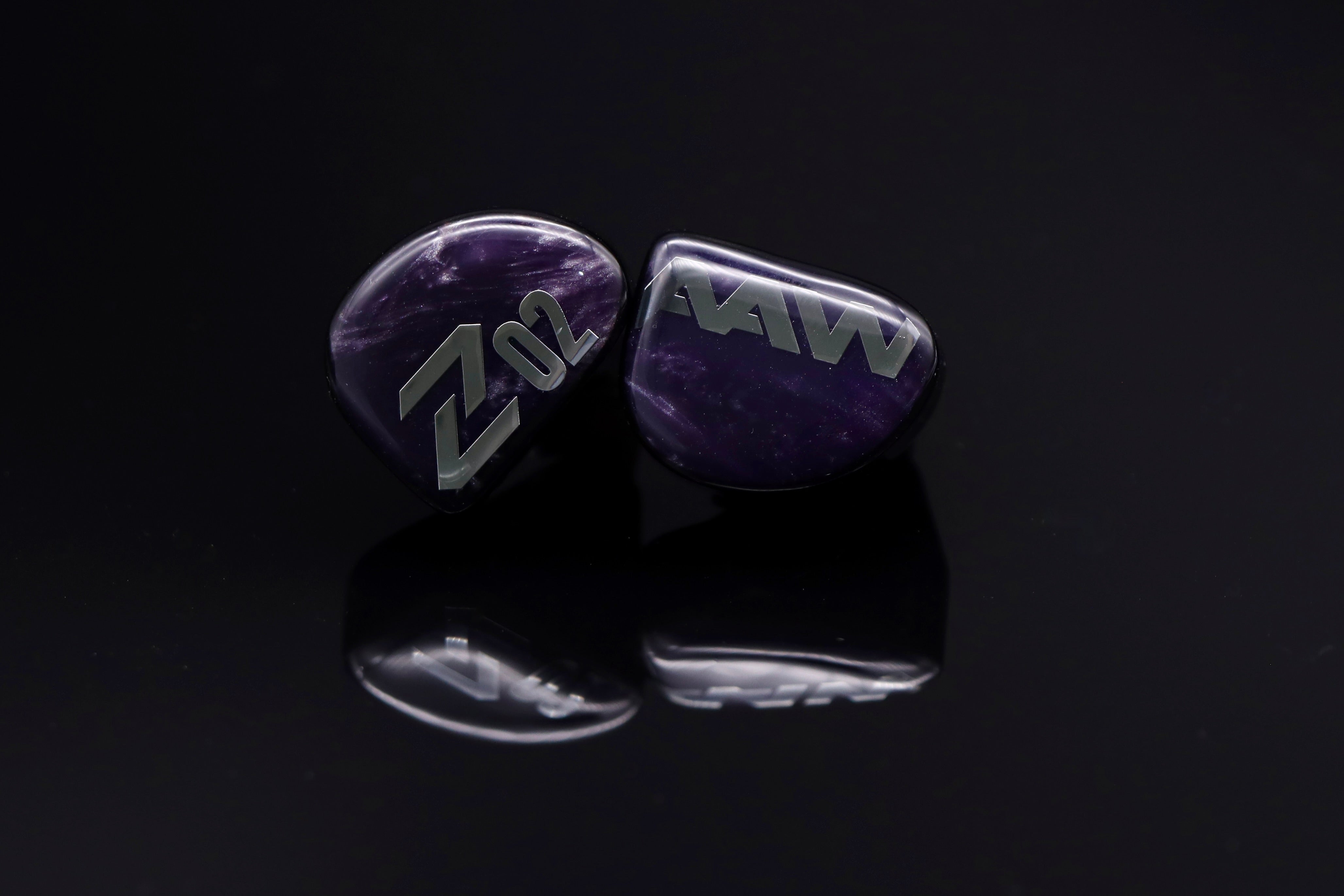

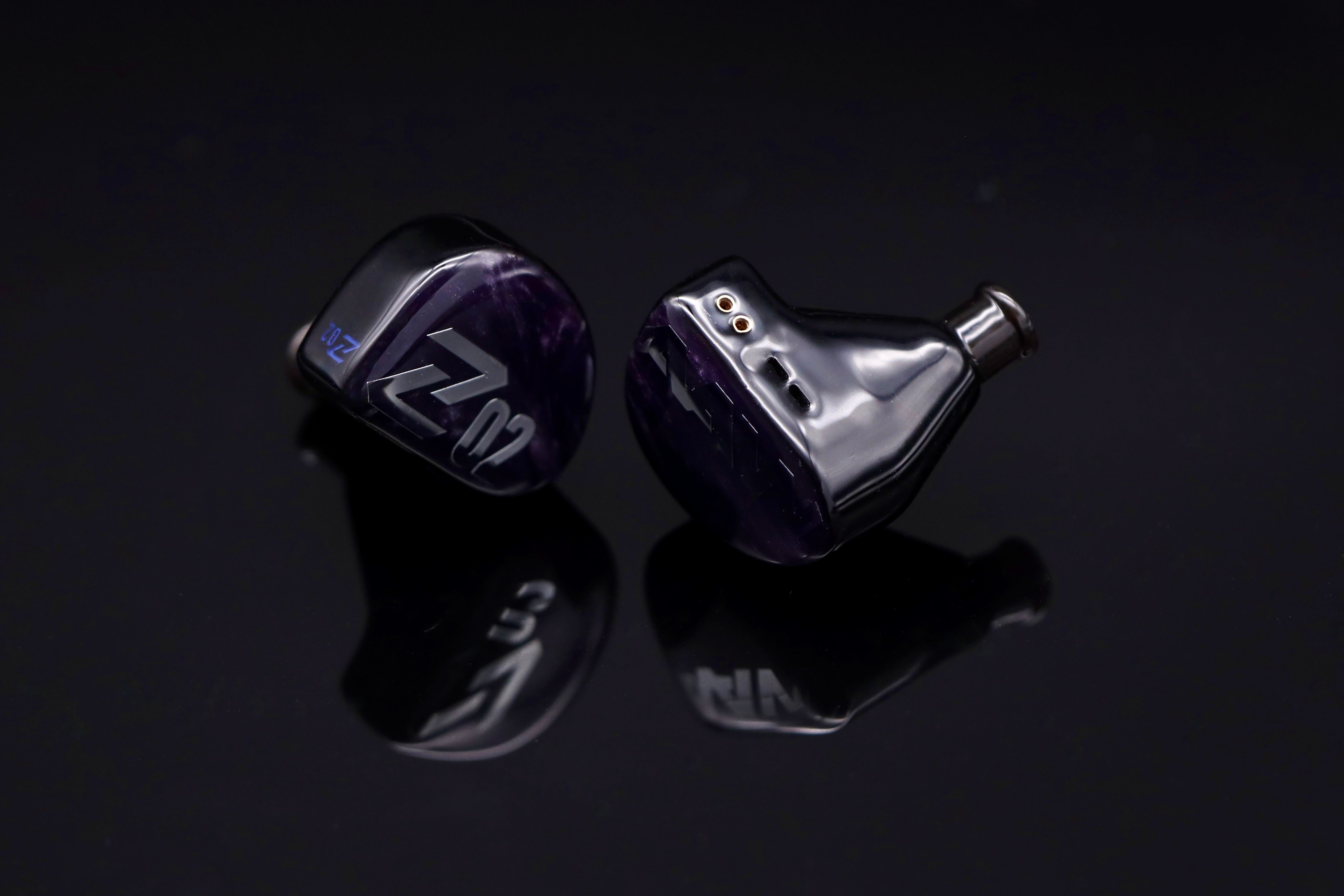

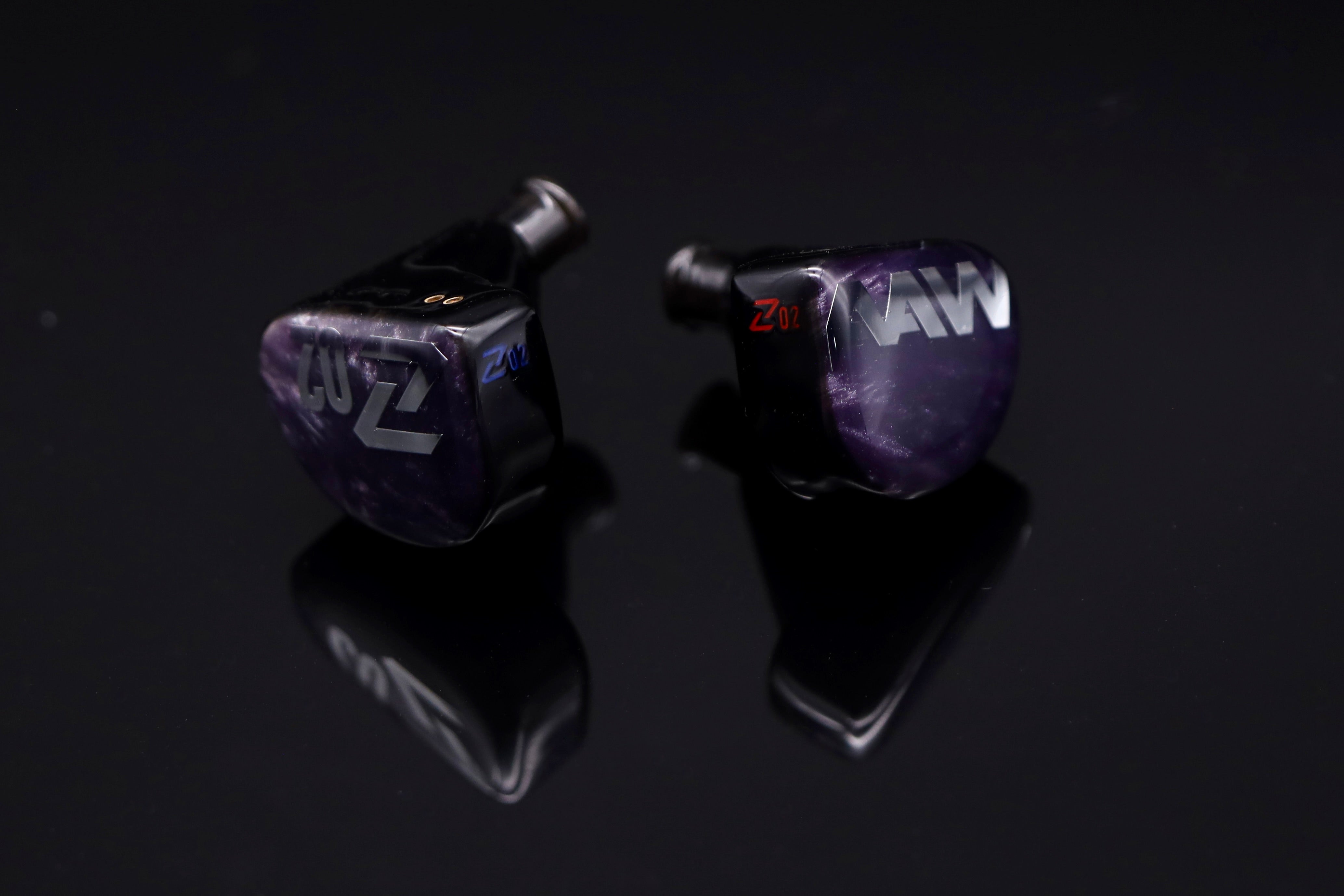

Z02 Planar Magnetic Universal In-Ear Monitor
Z02 Planar Magnetic Universal In-Ear Monitor
Tech Overview
Specifications
-
Driver Count: 2
-
Crossover: 2 Way
-
Sensitivity: 105dB
-
Impedance: 18Ohm
-

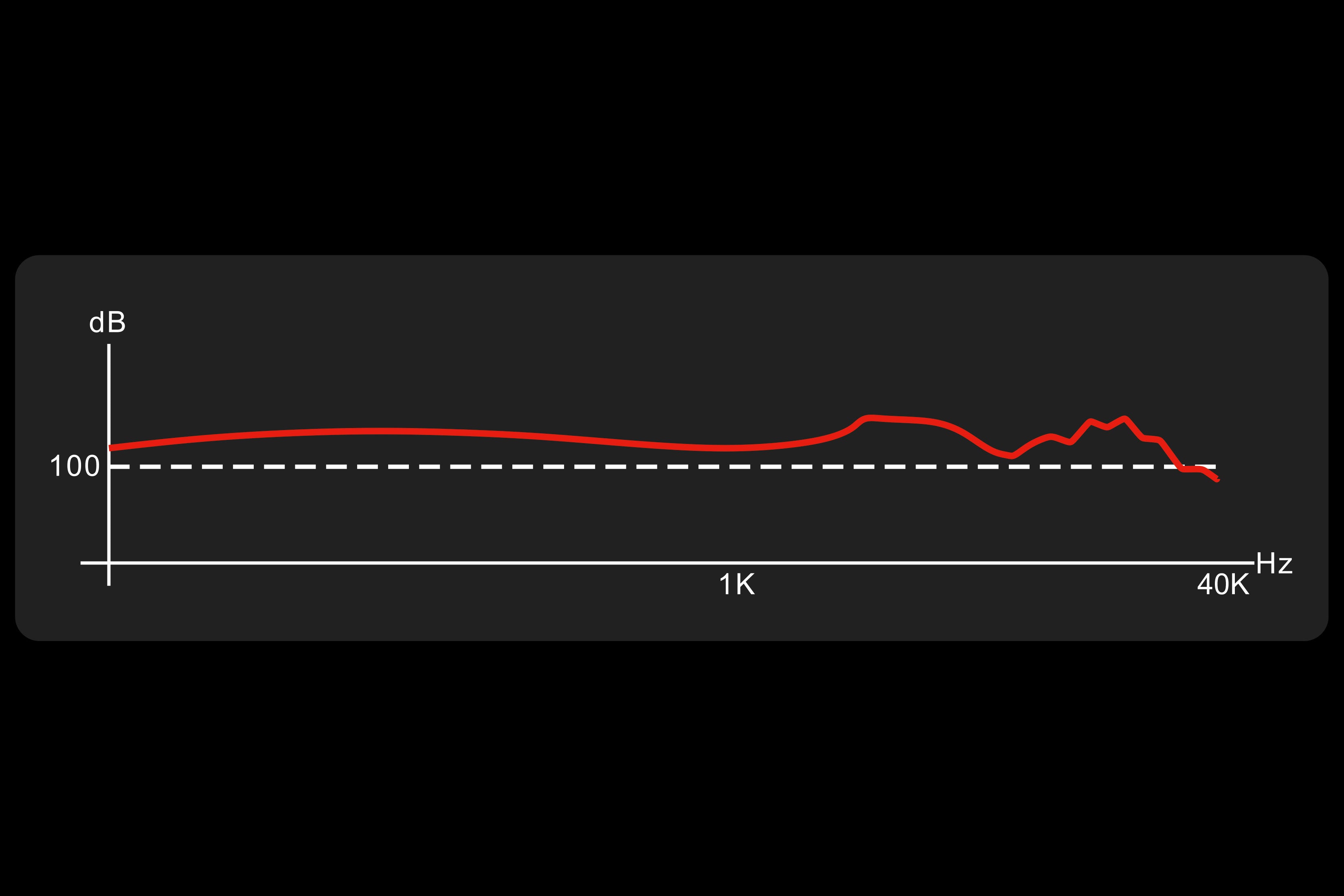

Frequency: 10Hz - 40kHz
-
Distortion<=1%
Introduction
The Z02 showcases an innovative dynamic-planar hybrid multi-driver system, meticulously tuned for a modern and lively sound signature. It delivers a natural and robust sub-bass response, unmatched by traditional all-balanced armature setups. Its state-of-the-art miniature planar magnetic tweeter ensures crystal-clear detail in the vocal and treble ranges, with a carefully managed treble extension that guarantees a smooth and fatigue-free listening experience.

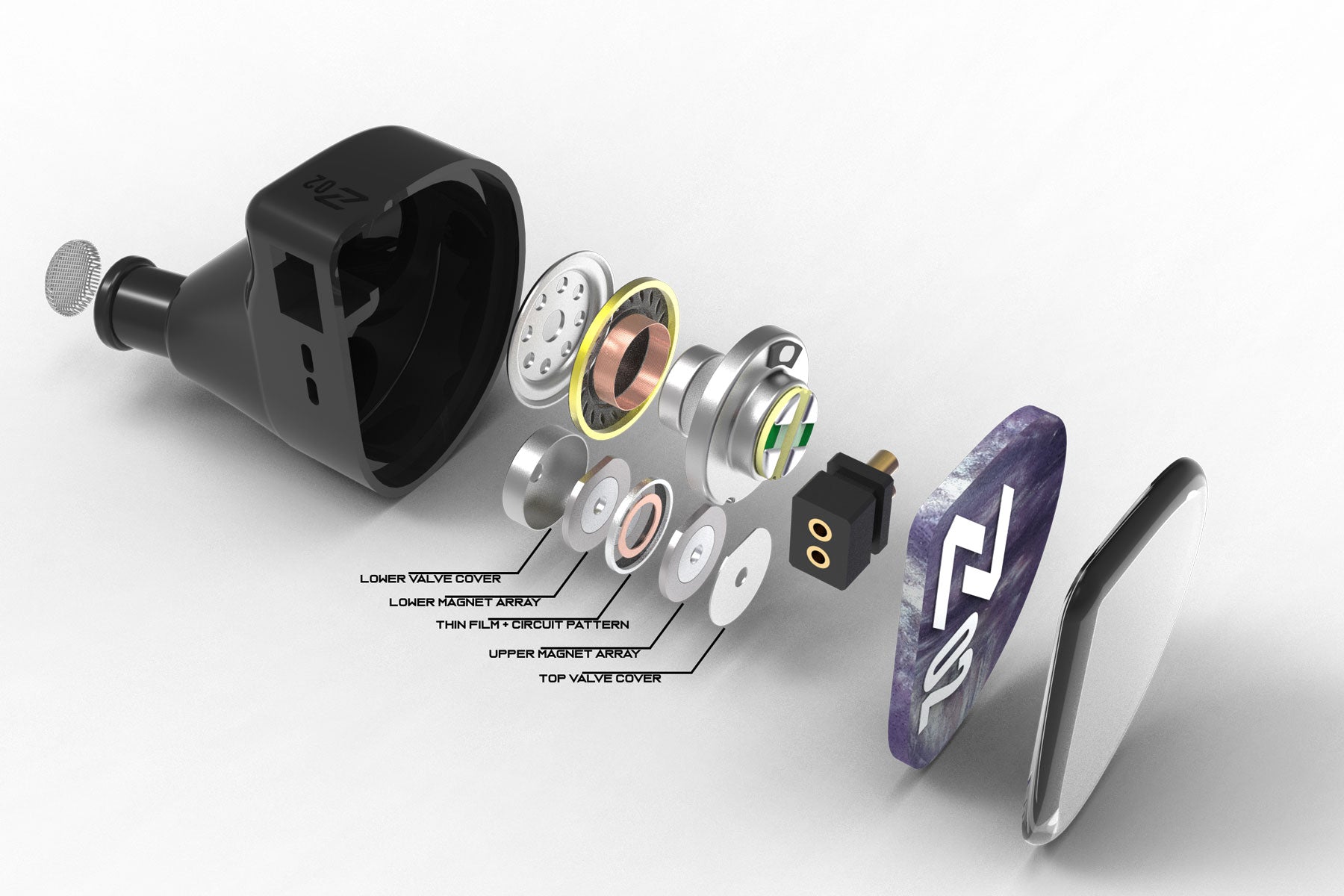

Miniature Planar Magnetic Tweeter
The Z02's hybrid design features a specially designed miniature planar magnetic tweeter embedded in a 3D-printed shell, eliminating sound pressure decay and resonance typical of traditional tubed balanced armature designs. This tweeter enhances high-frequency performance with precision, extended range, and low distortion, while its compact size, fast transient response, and wide dispersion ensure realistic sound reproduction and a consistent soundstage. Its durable, robust design resists environmental changes, and it synergizes effectively with the dynamic armature drivers in multi-driver systems, delivering a well-balanced and high-fidelity audio profile.
10mmGraphene Dynamic Driver
The newly designed dynamic driver features an ultra-thin,
rigid film diaphragm crafted from graphene material. Paired with a
physical low-pass filter, it operates within a minimal overlapping frequency
range, complementing the planar tweeter. With a meticulously arranged driver
positioning and an advanced 3D-printed acoustic chamber design, AAW achieves
enhanced coherence, reduces phase shift, and optimizes the timing of audio
signal delivery for a more precise and immersive listening experience.
3D Printed Enclosure and Precision Engineering
With a wholly digitized design process, Z02 employs AAW 3rd
generation digital enclosure and acoustic chamber design. Driver and nozzle
placements are simulated hundreds of iterations to determine the ideal phasing
and response. It is then 3D printed to precision to maintain consistency in
mass production.

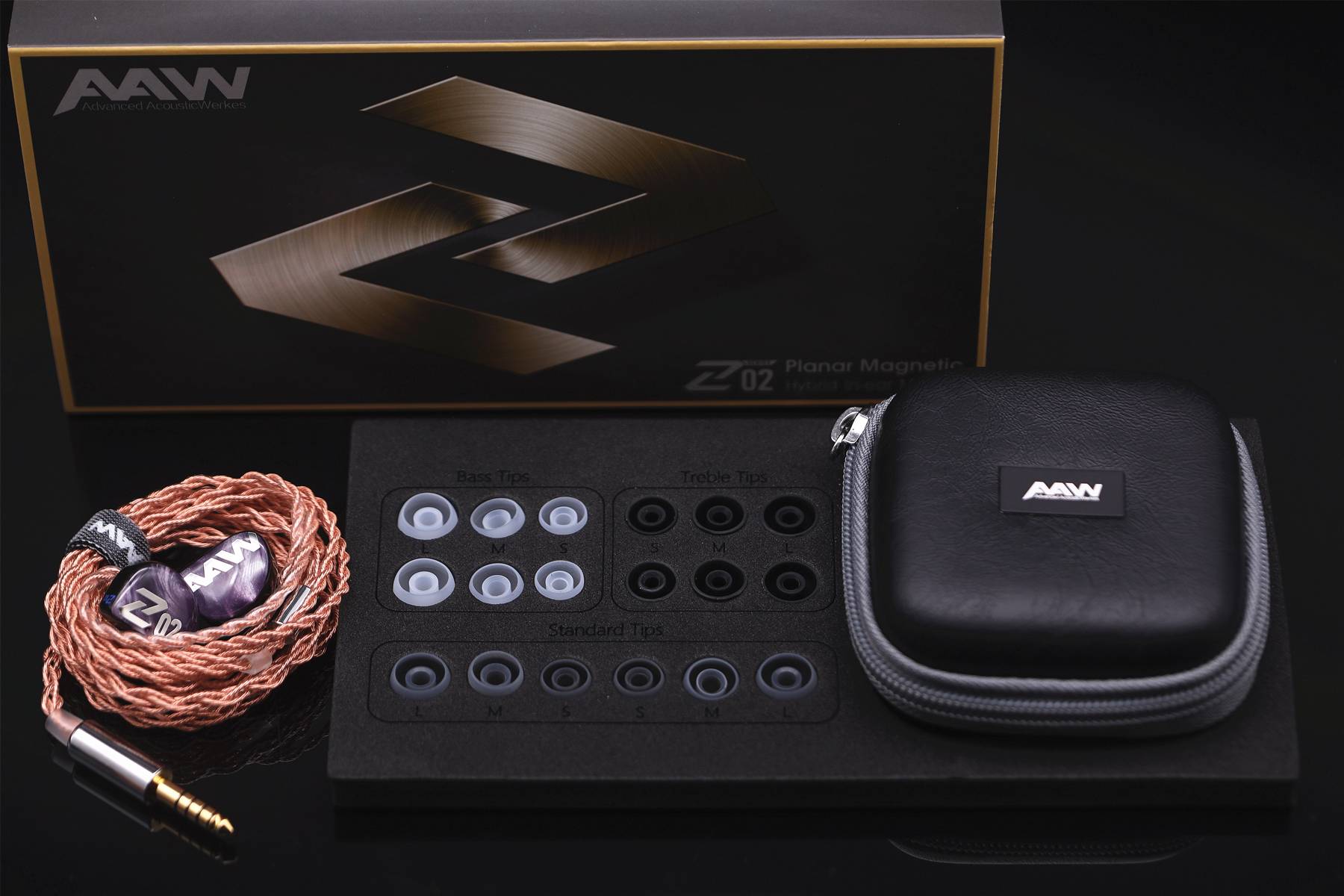

Accessories and Warranty
48" Null Audio Brevity Pro Plus OCC Detachable Cable
AAW Carrying Case
3 Pairs AAW Short Stem Foam Tips(S/M/L)
6 Pairs AAW Assorted Silicone Tips (S/M/LX2)
1 Year Limited Warranty
Experience Z difference
Advanced Hybrid Driver Architecture
The 3D-printed chambers are meticulously engineered to optimize driver placement and acoustic flow, ensuring seamless integration between dynamic and balanced armature drivers. This design minimizes distortion, enhances phase alignment, and delivers a rich, detailed sound signature with balanced lows, mids, and highs, tailored for audiophiles and professionals seeking superior clarity and precision.
TUNED AND TESTED
Suitable for rising artists, band performances, streaming platform, worship events, audio engineering and anybody who appreciates critical listening experience.
Cabling and Accessories
-

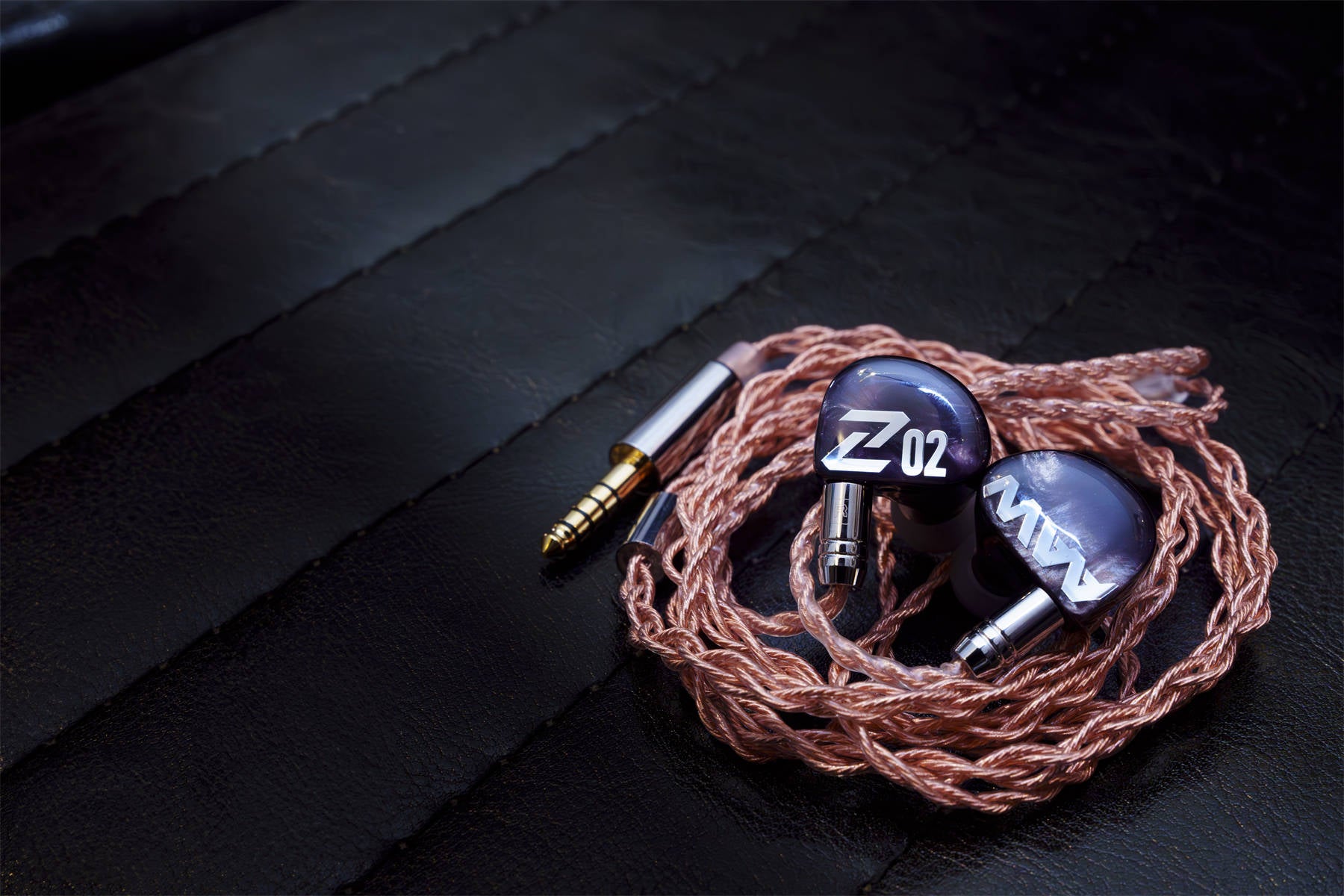

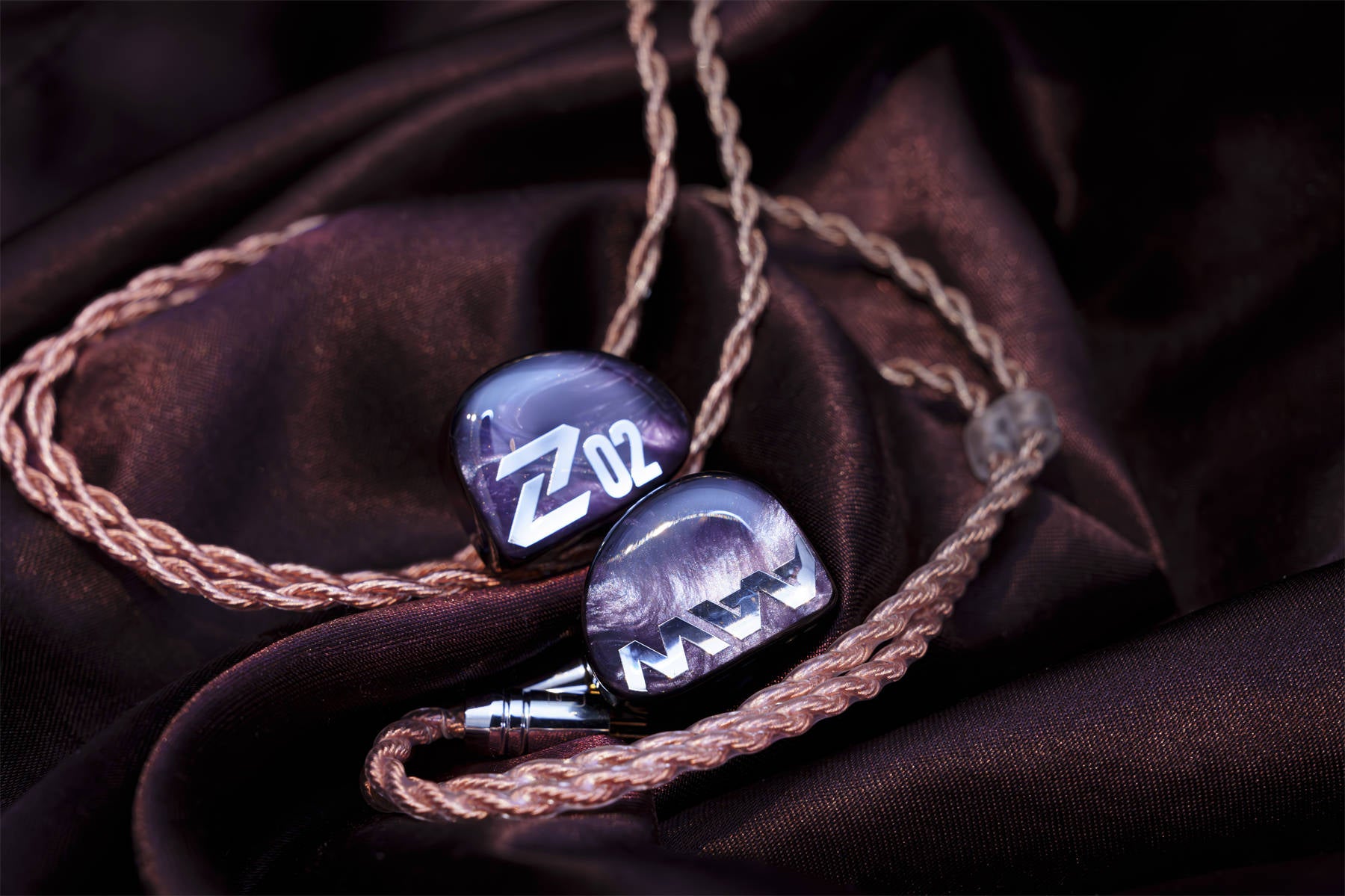

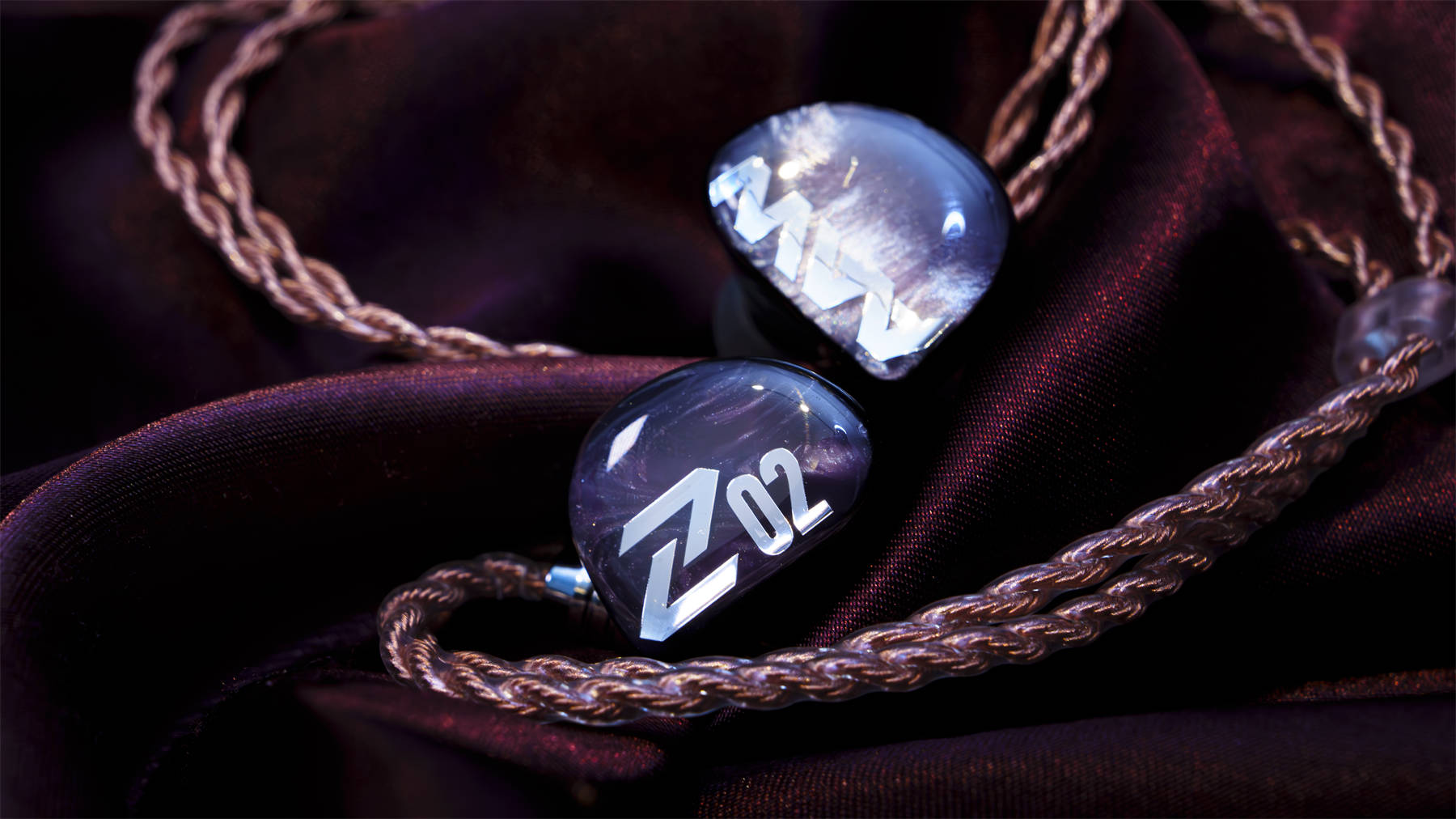

Brevity Pro Plus Upgrade Cable
-
Protection on the GO
-
Bass and Treble Eartips and More
-
The Brevity Pro Plus Cable features 4 twisted 26AWG 5N OCC copper wiring. They are machine twisted for better consistency and flexibility, with little memory effect. It is perfect for use on the go and on stage.
-
Z02 ships with a semi-rigid zipper cable for maximum protection of your monitors on the go.
-
The Z02 ships with an assorted choices of eartips in various sizes and flexibility. This allows you to experiment with different tips to tailor the bass and treble sound signature to your preference, ensuring the perfect fit and personalized audio experience.
* Custom Fit Monitor does NOT ship with any ear tips nor does it need them.
The AAW Vantage
CUSTOM FITMENT
IMPECCABLE UNIVERSAL FITMENT
SKIN SAFE MATERIAL
Precision Audio Design
